Project sheet (PDF)
showroom_cembrit.pdf

Material Data

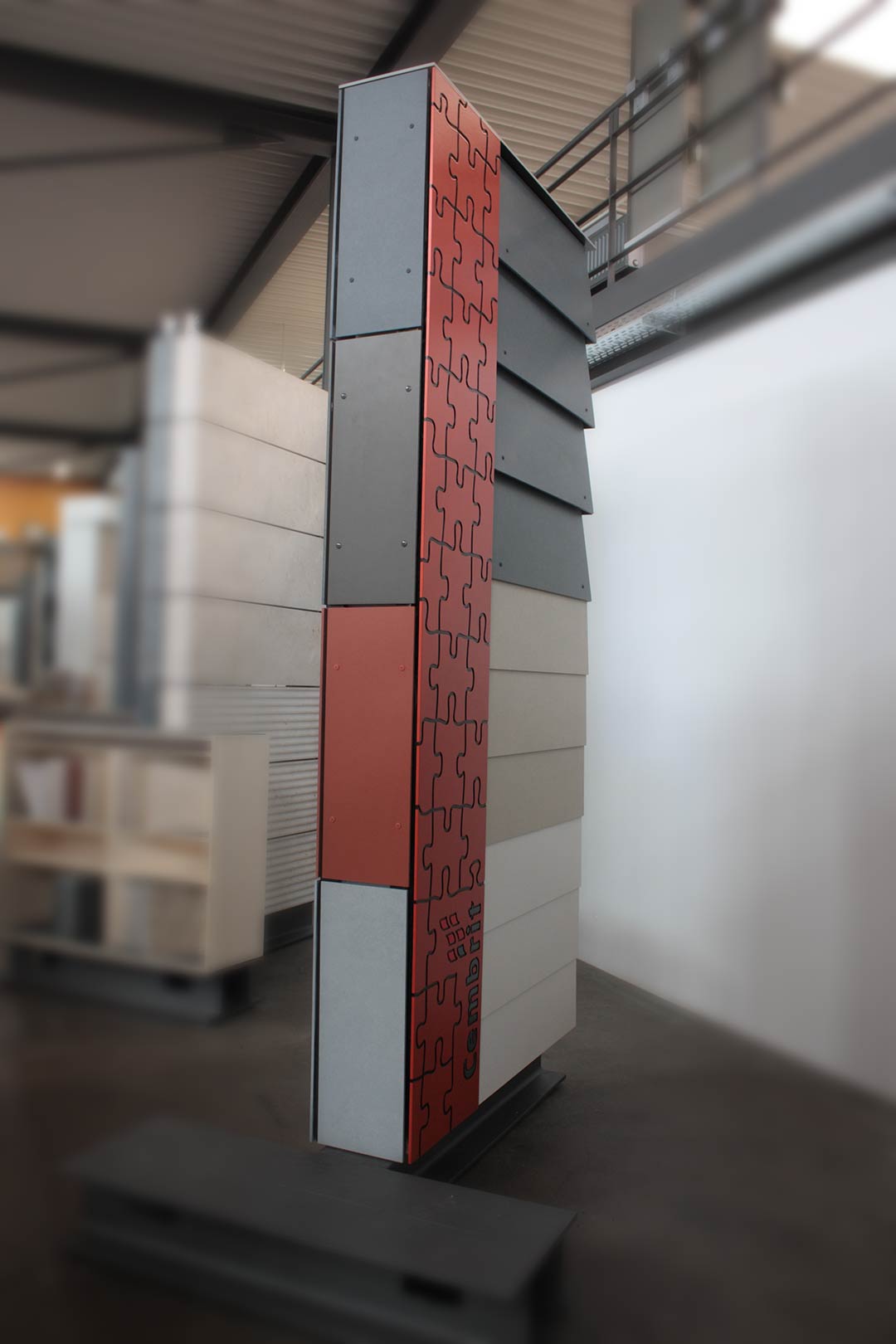

Front and side elevation 1
Fiber cement panels

• Cembrit Raw with special coating with milled grooves, panel thickness 8 mm, adhesive fixation

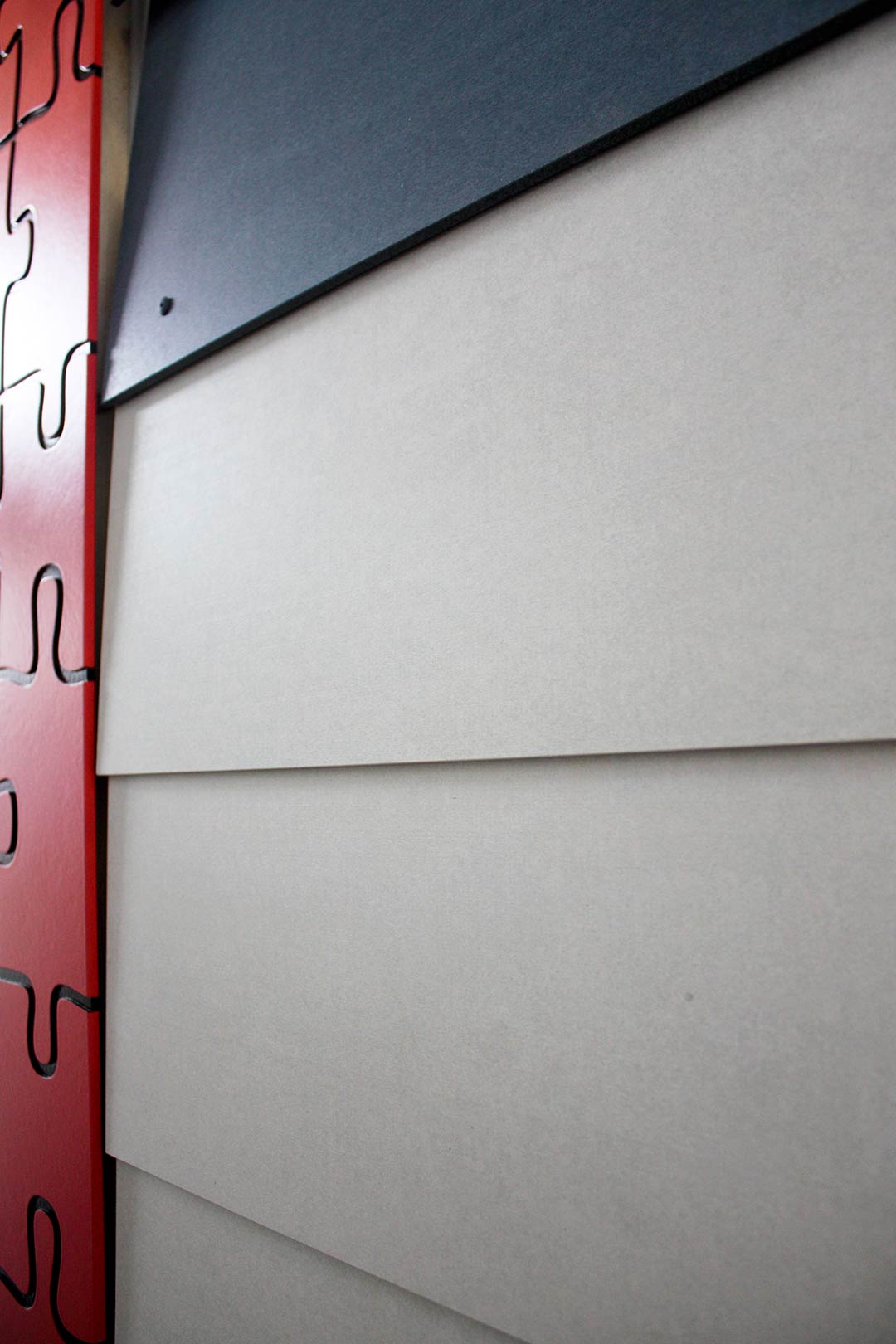

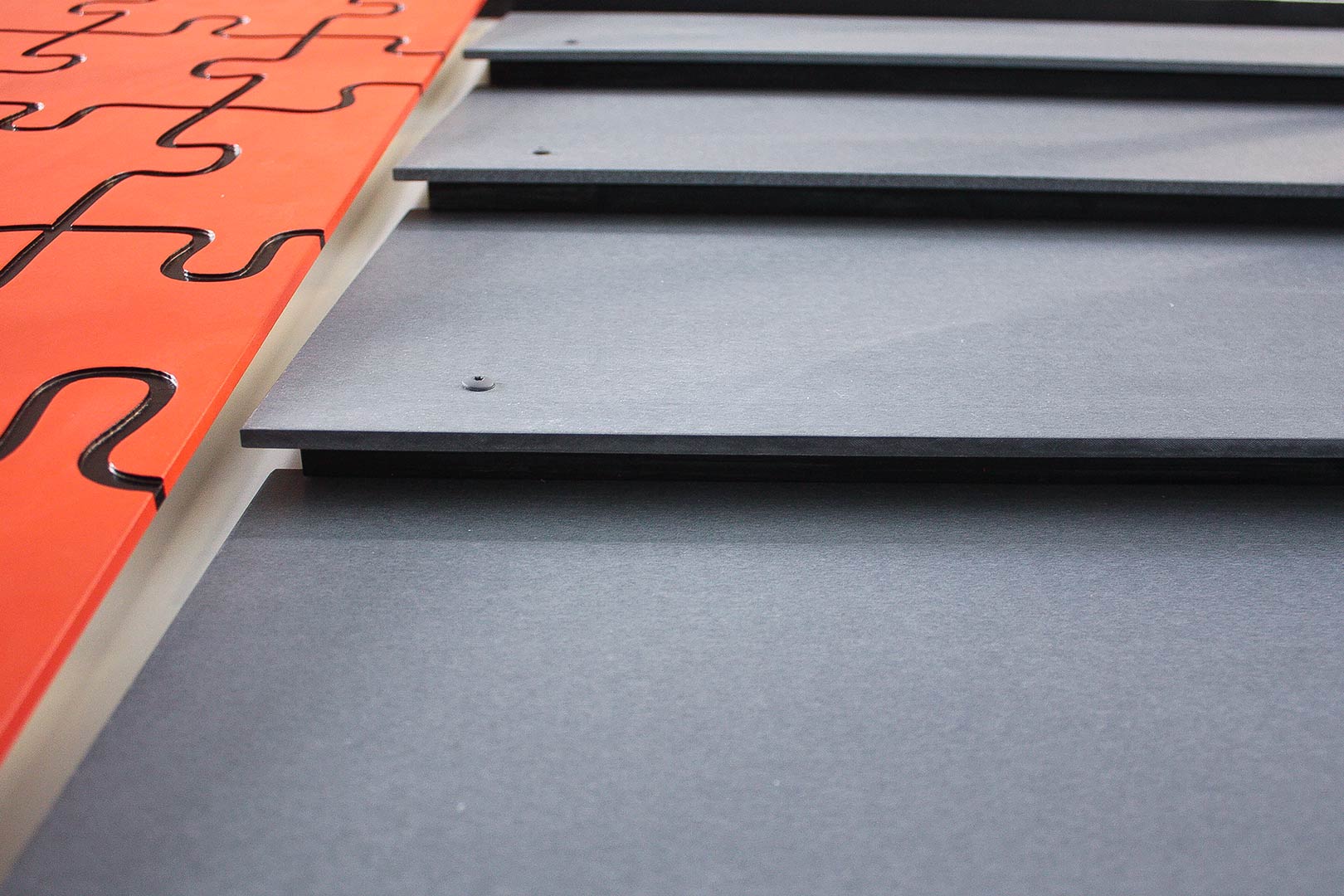

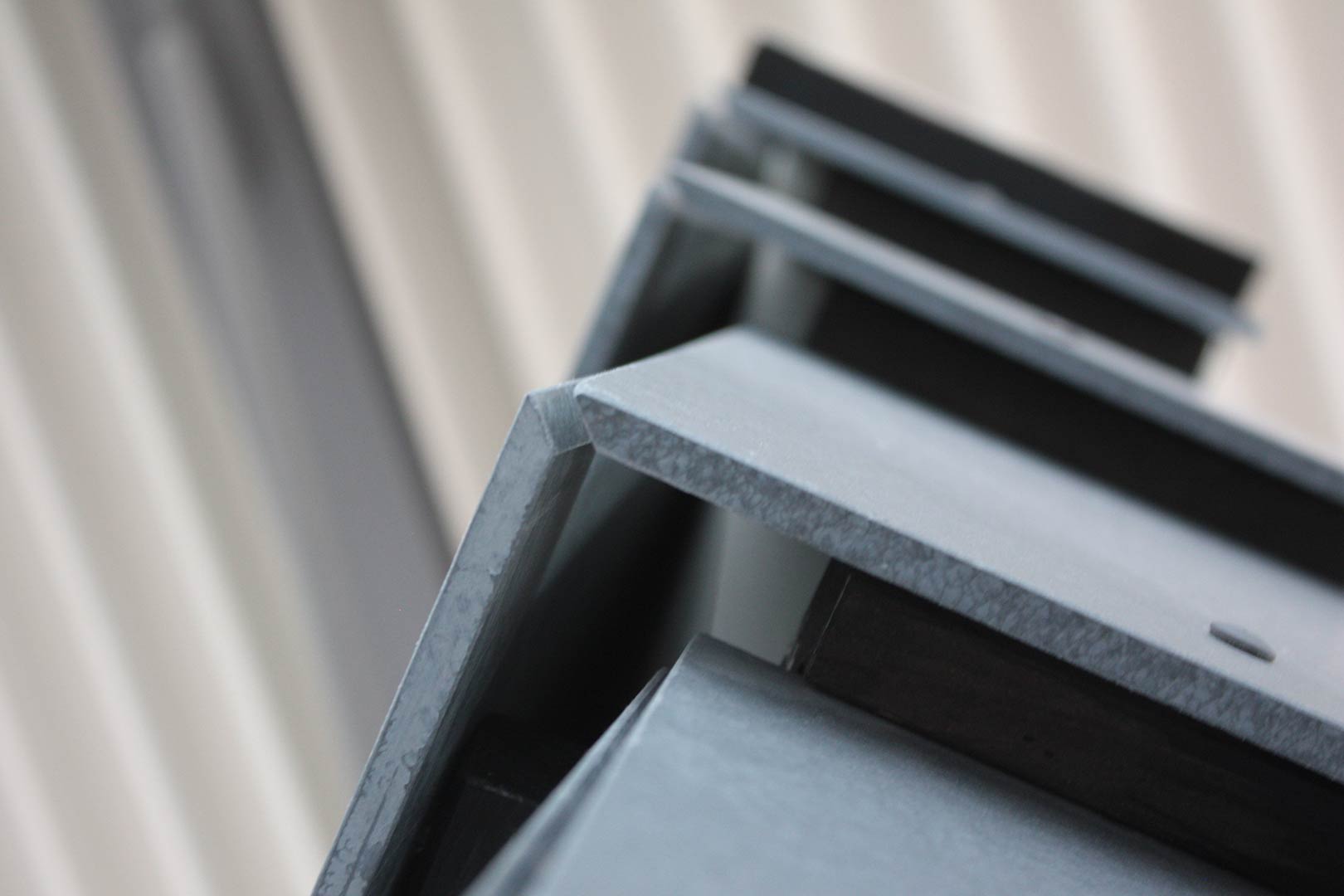

• Cembrit Cembonit, panel thickness 8 mm, imbued with matt finish, colour Flint, fixation directly on the sub-structure with distance, imbricated arrangement
• Cembrit Cembonit, panel thickness 8 mm, imbued with matt finish, colour Sand, fixation directly on the sub-structure without distance, imbricated arrangement
• Cembrit Cembonit, panel thickness 8 mm, imbued with matt finish, colour Pearl, fixation directly on the sub-structure without distance, imbricated arrangement

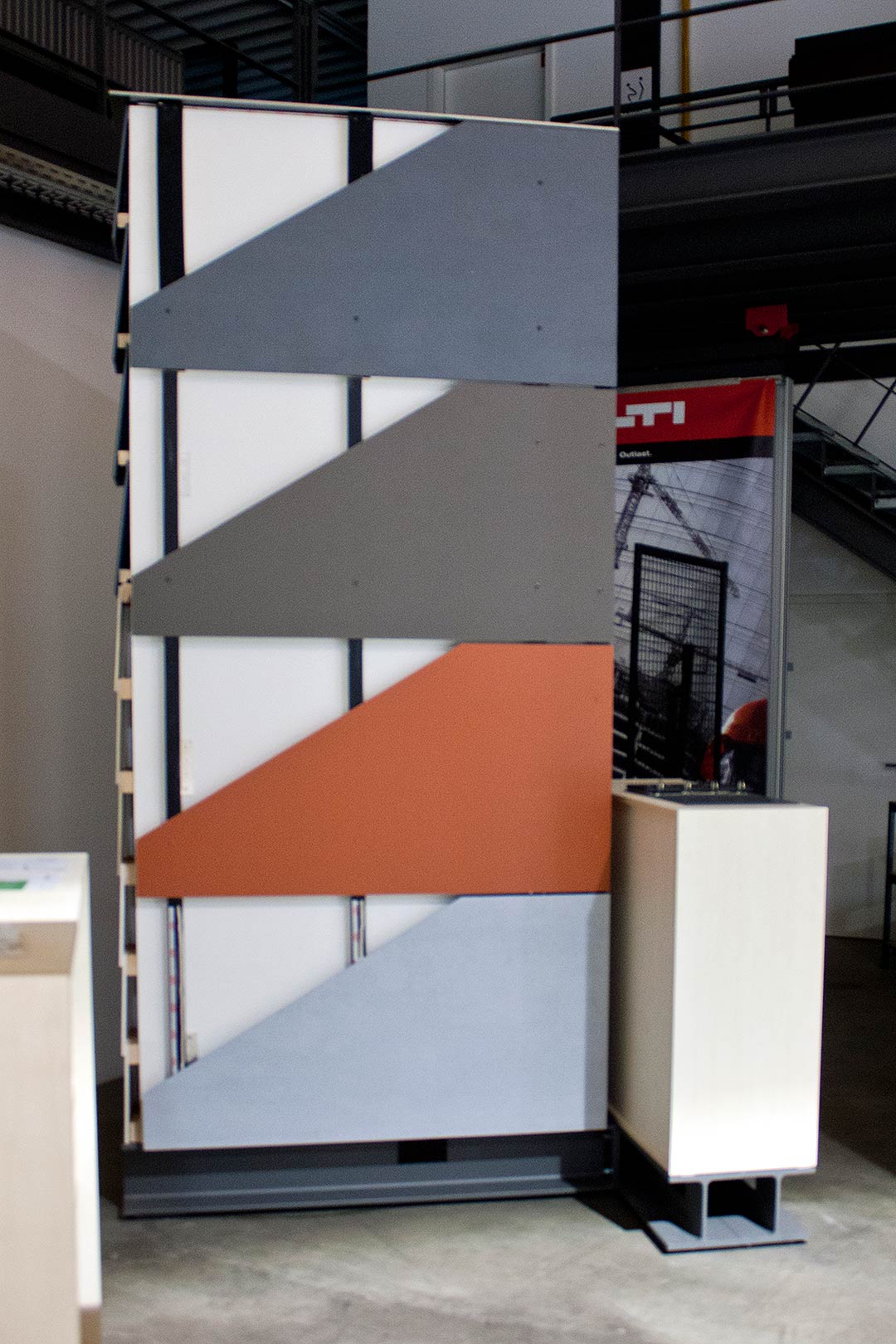

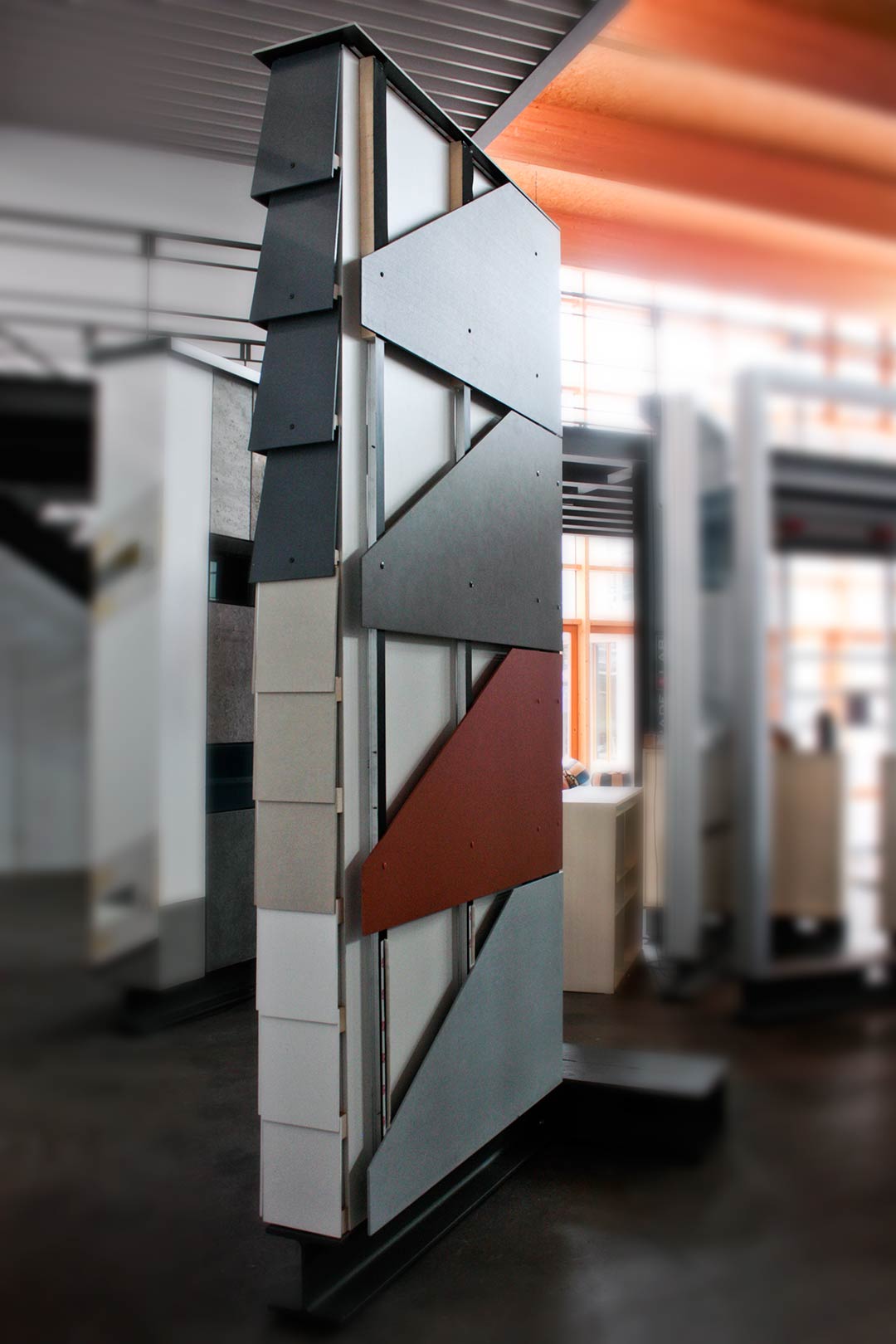

Rear and side elevation 2
Fiber cement panels

• Cembrit Cembonit, panel thickness 8 mm, imbued with matt finish, colour Flint, directly fixed to the wood sub-structure using screws

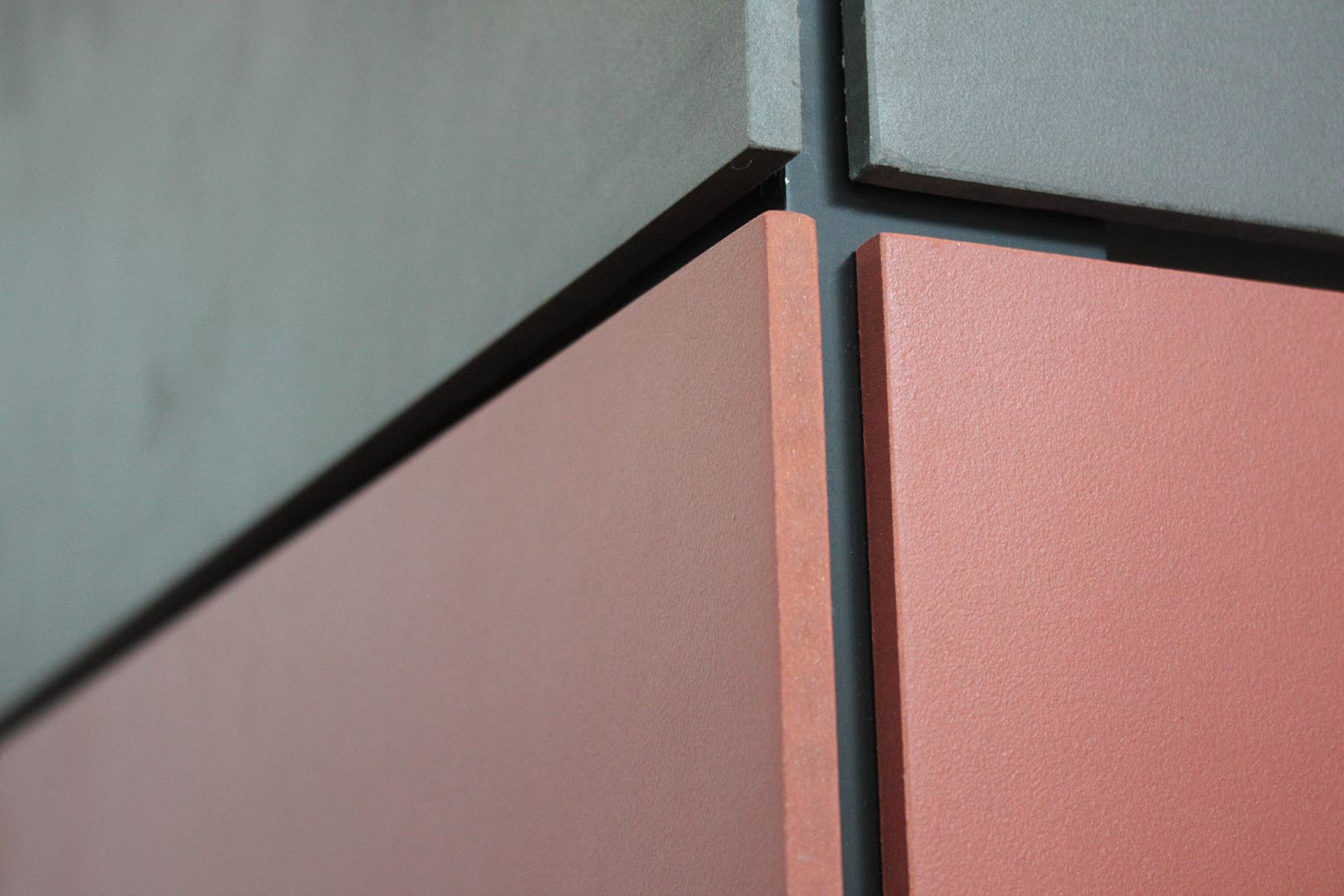

• Cembrit True, panel thickness 8 mm, imbued with transparent coating, colour Etna, directly fixed on the aluminum sub-structure using rivets
• Cembrit True, panel thickness 8 mm, imbued with transparent coating, colour Vesuv, directly fixed on the aluminum sub-structure using rivets

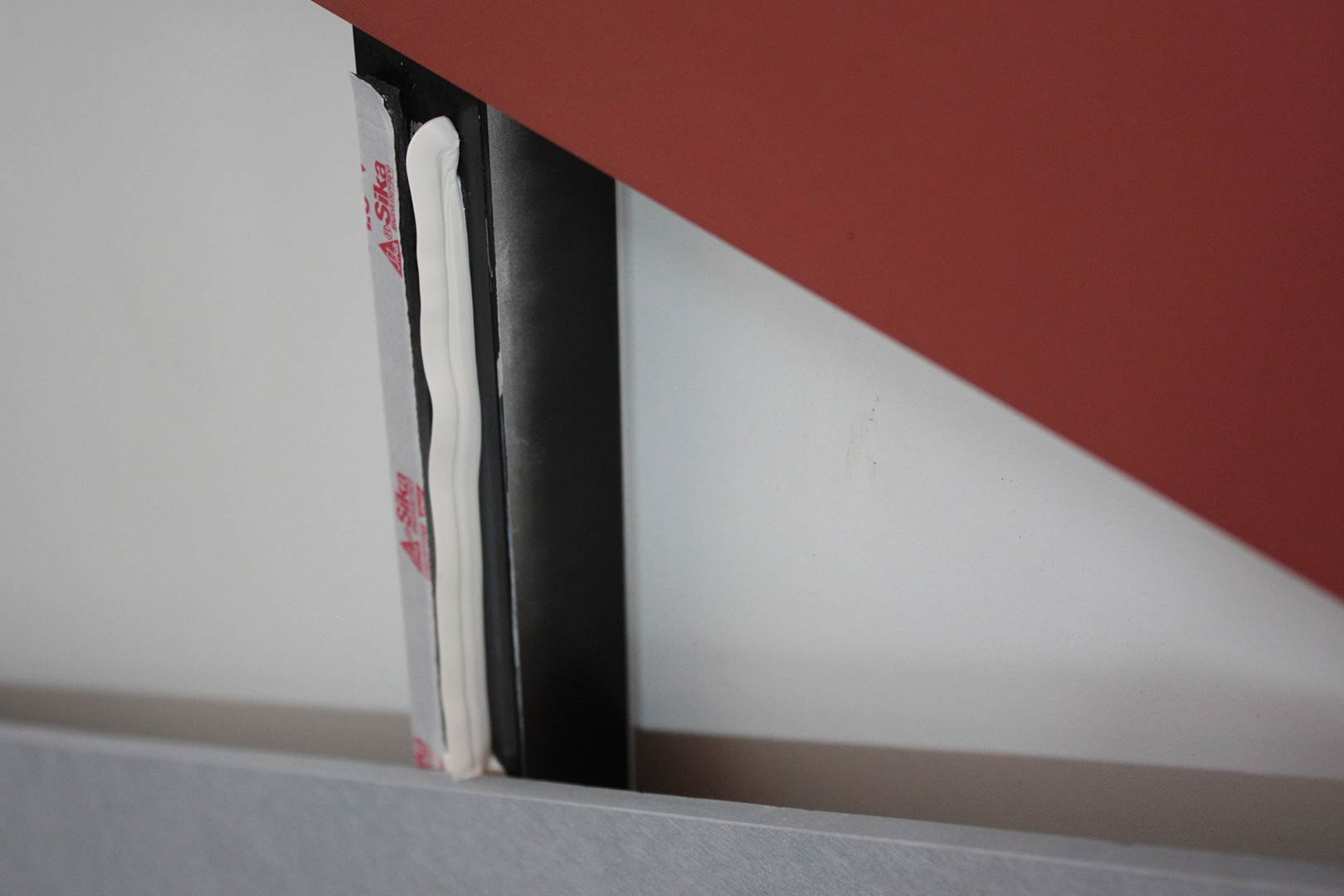

• Cembrit Cembonit, panel thickness 8 mm, imbued with matt finish, colour Flint, aluminium sub-structure using direct fixing by approved bonding system

Max. panel width up to 1250 mm, max. length up to 2500 / 3050 mm, panel thickness available from 6 mm up to 10 mm according to structural requirements

Fixing
Fixing options of fiber cement panel on substructures in wood or aluminum such as screwed, riveted or bonded

Characteristics
Material is stable as concrete, but with a very low weight, highly resistant, quick to assemble, is fully recyclable, substructure is used in different distances.
