Material Data

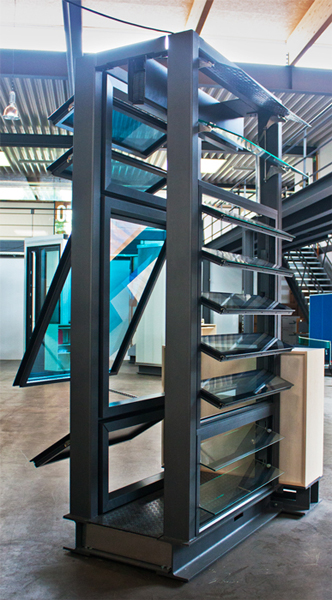

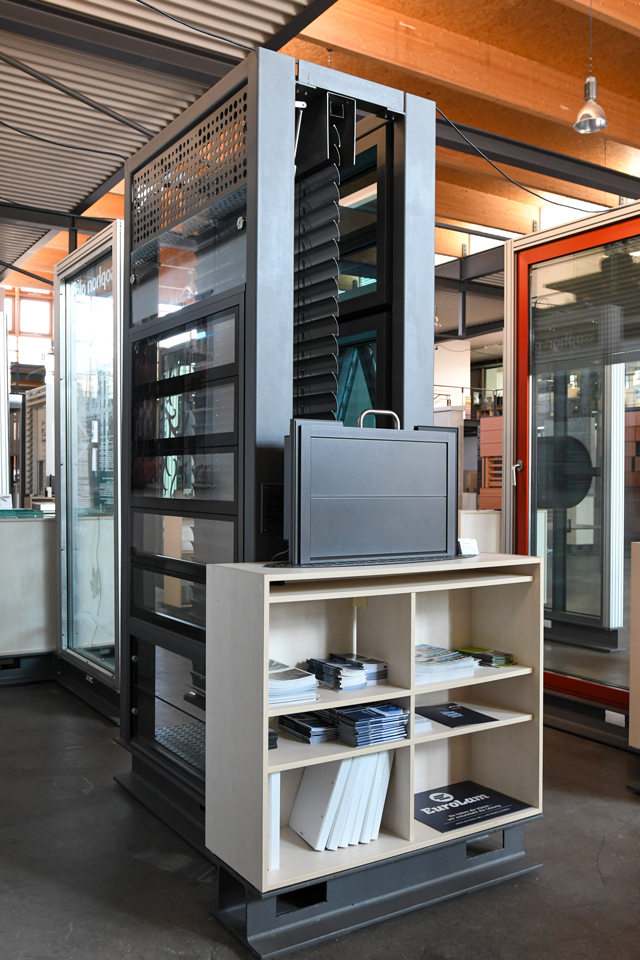

Front elevation
Louvre windows system EAL

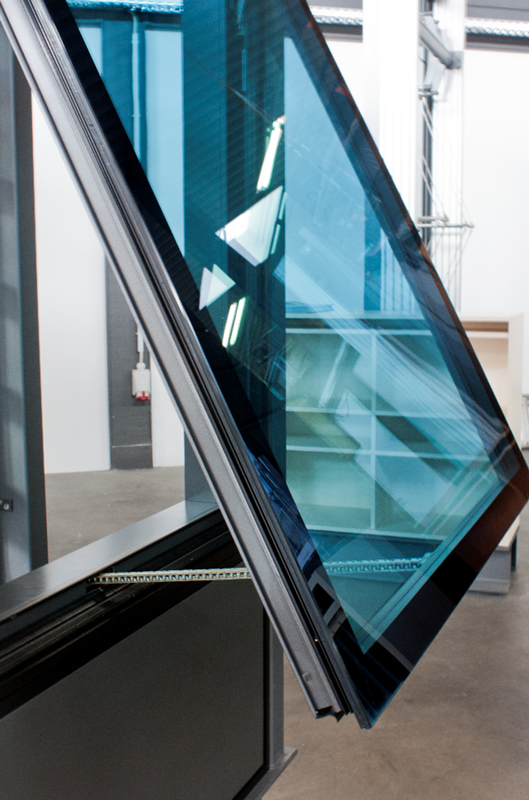

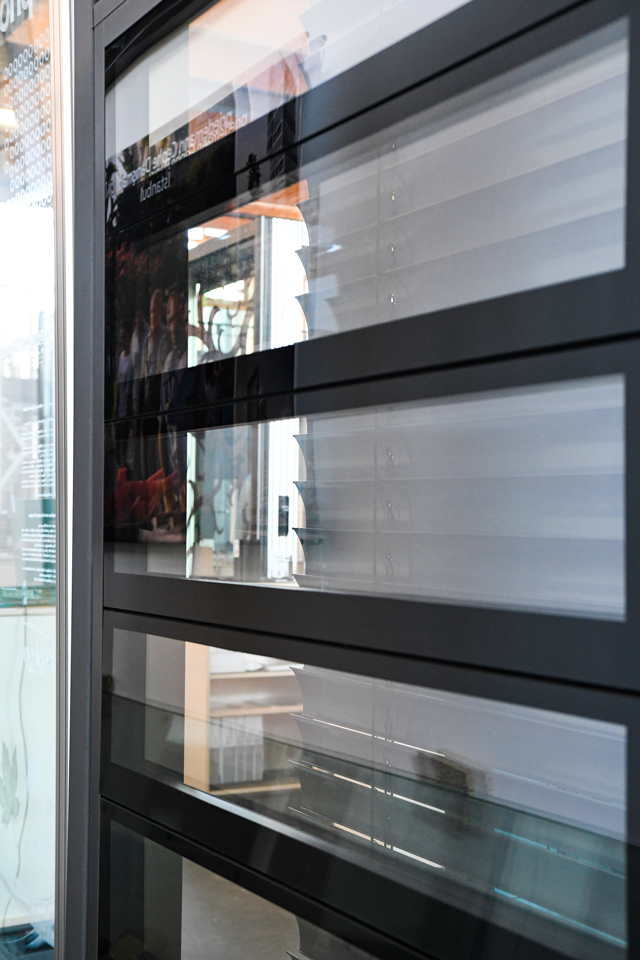

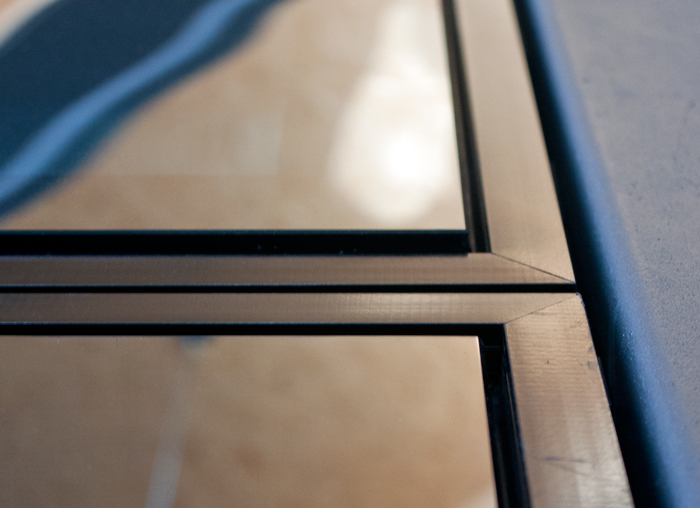

• EAL Louvre window, two louvres with stepped solar control glazing “Dark Blue“, element size 1,190 mm x 756 mm, frame and blades as thermally broken profiles, inner profile as aluminium (extruded) profiles and outer cladding as plastic profiles, electric driven
• EAL WALL Louvre window with solar control glazing “Dark Blue“, element size 1,190 mm x 1,368 mm,
  same system as (1), but electric driven by chain drive

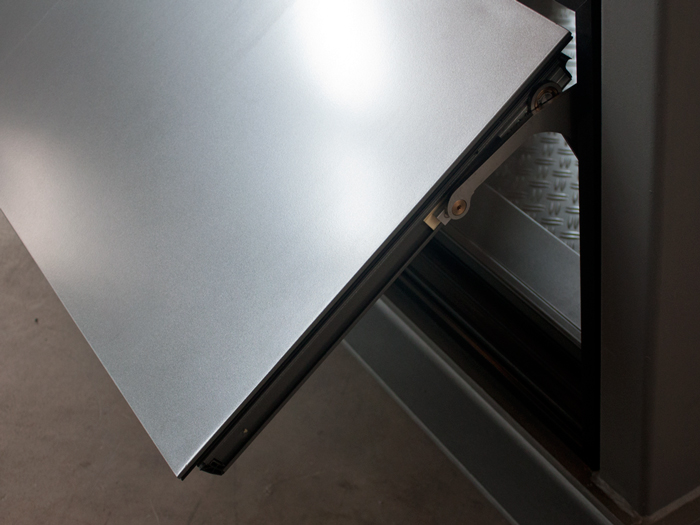

• EAL Panel, aluminium panel, single louvre, operation as (1), element size 1,190 mm x 493 mm

Rear elevation

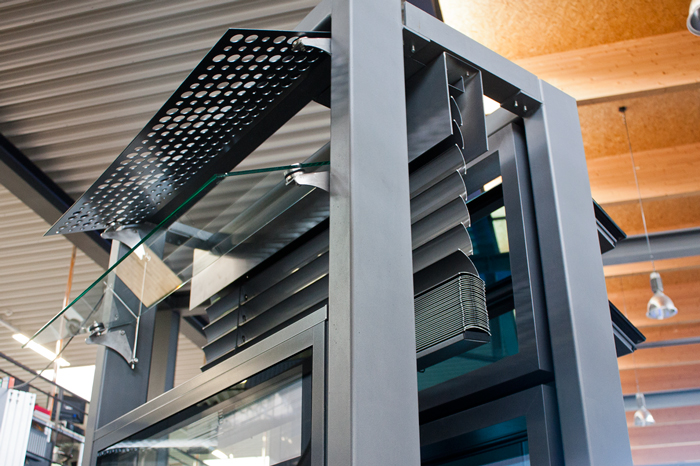

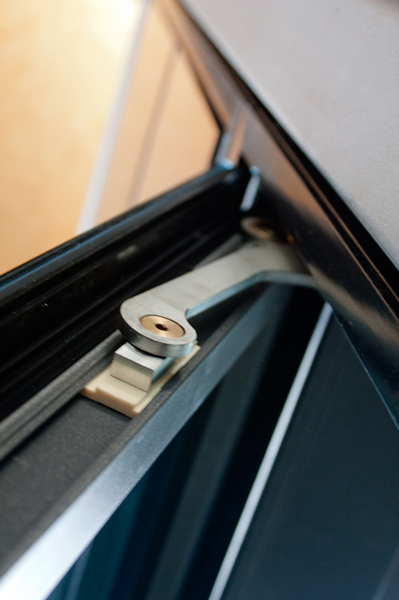

• Louvre window system GG BH, two louvres, with point fixings, superimposed louvre-blades with pivoting stainless steel brackets bolted to the substructure, with concealed stainless steel fittings, electric driven

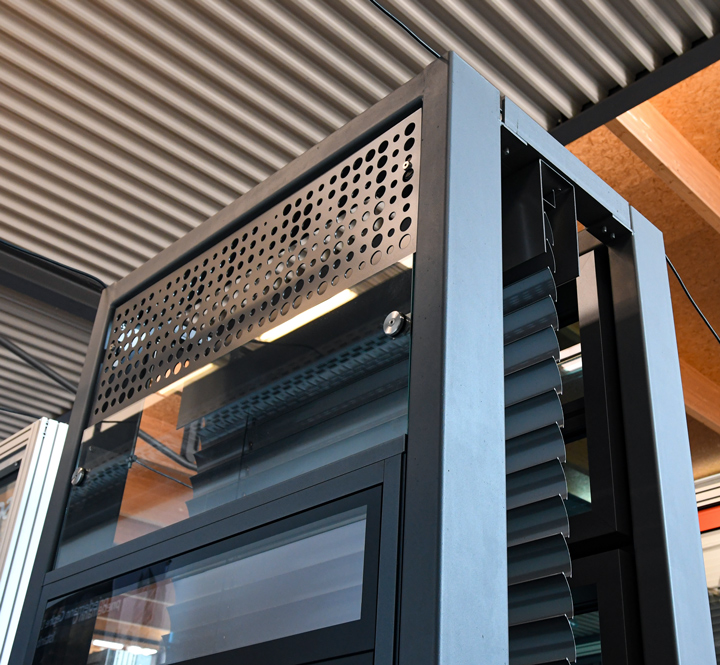

• Perforated aluminum sheet, thickness 3 mm, element size 1,190 mm x 354 mm

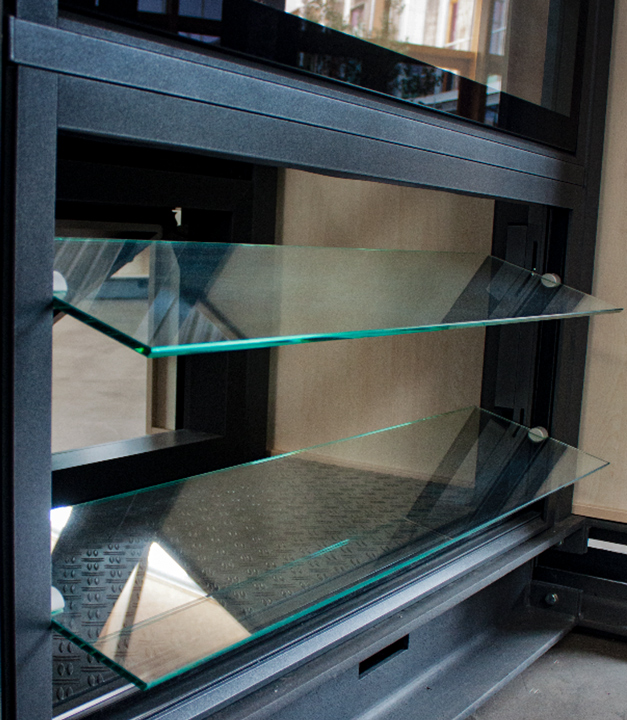

• All-glass louvre made of toughened glass,
  element size 1,190 mm x 345 mm

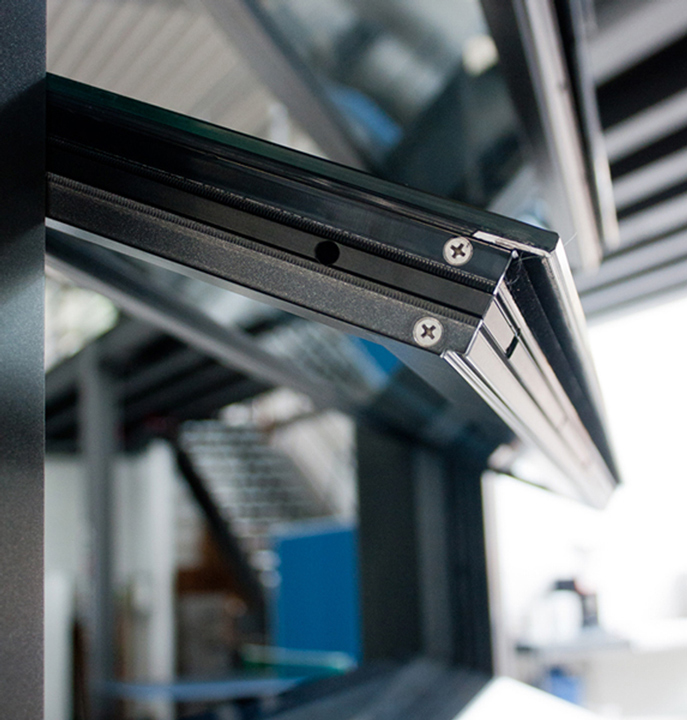

• Louvre window system STG ISO 36 BT 50,
  five louvre-blades, element size 1,190 × 1355 mm, frame made from extruded, thermally broken aluminium profiles, overall frame depth 50mm,
  with concealed fittings, electric driven

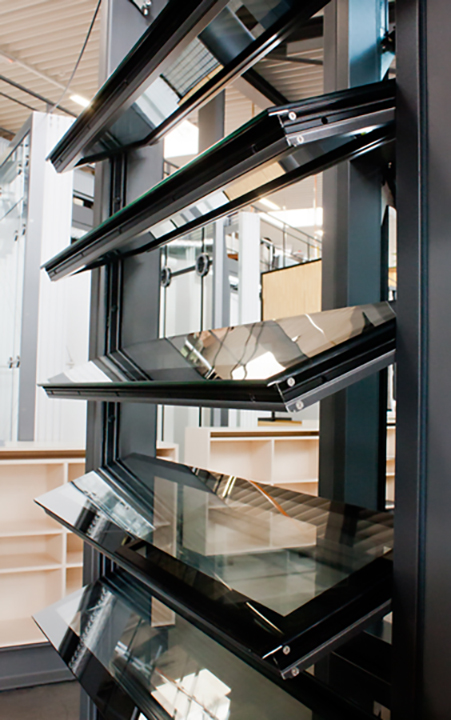

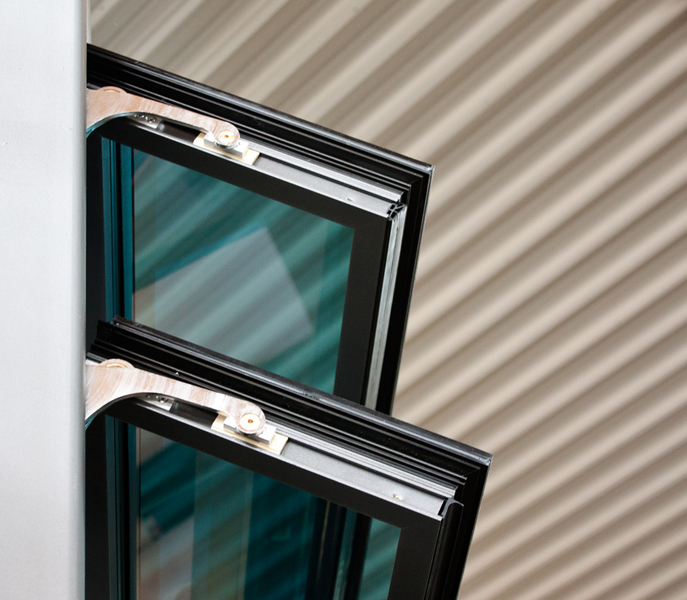

• System GG SK 30 BT 50, two louvre-blades,
  element size 1,190 mm x 502 mm, electric driven
• Sun protection by Warema

Characteristics
High isolating construction, all-glass appearance (Structural Glazing) on the outside, max. width 2,500 mm no additional reinforcement on inner side necessary up to an angle of 80°, angle of beam arbitrary, opening fittings and drives integrated into frame, max. glass thickness 46 mm

Coating
All surfaces in DB 703
