Material Data

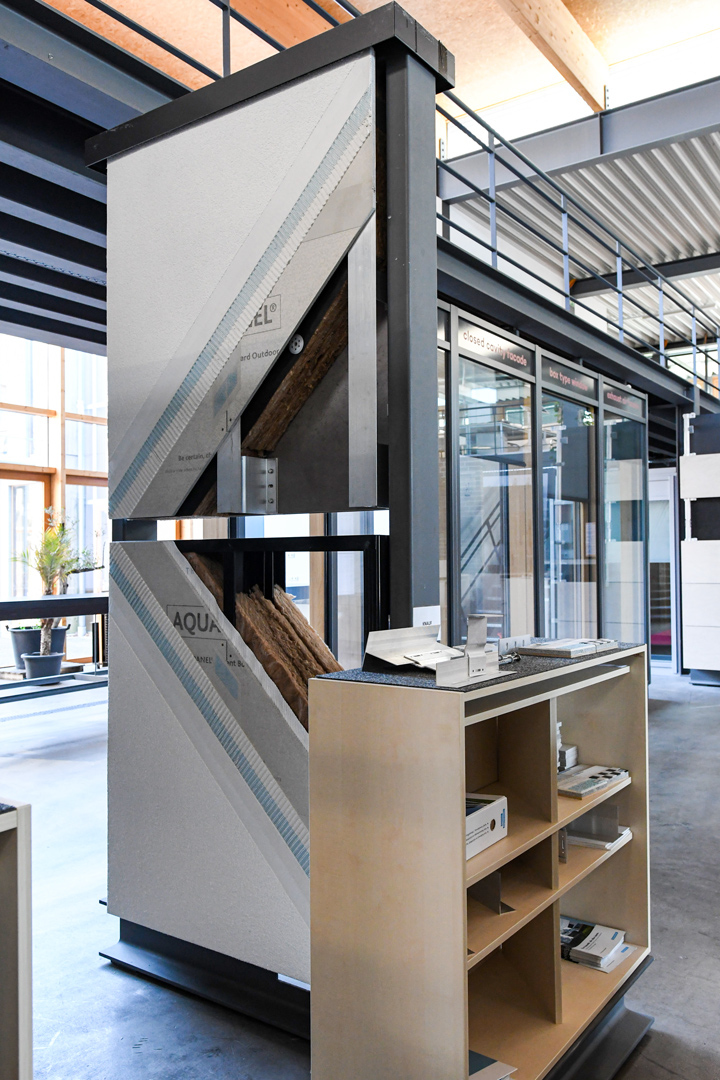

Front elevation

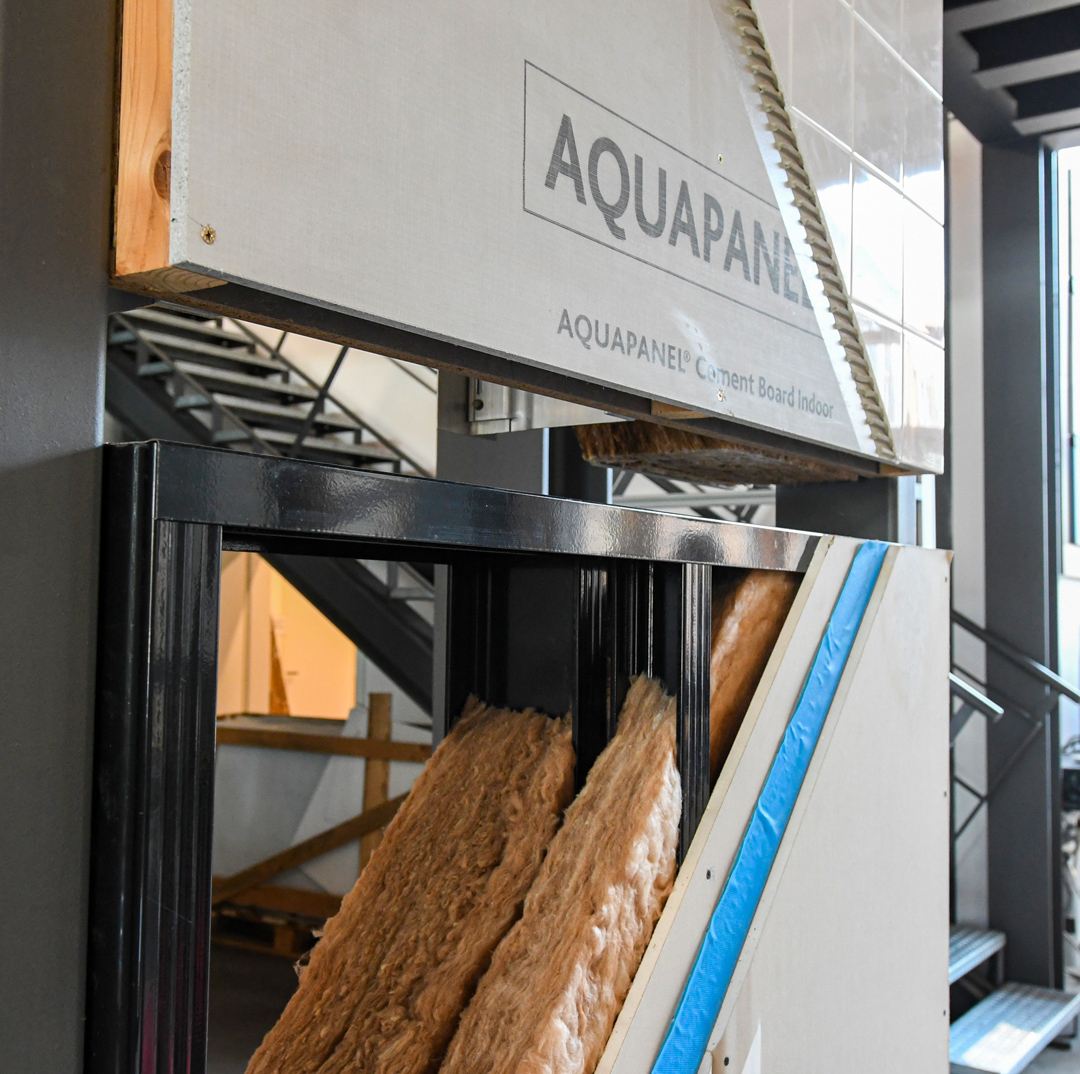

Wet room interior solution

• Wet room interior solution
  Following assembly from the outside to the inside:
  5 mm ceramic tiles white, 5 mm tile adhesive, AQUAPANEL^® Cement Board Indoor, primer, 2 x OSB panels 22 mm, fastening with AQUAPANEL^® Joint Adhesive und AQUAPANEL^® Maxi Screws

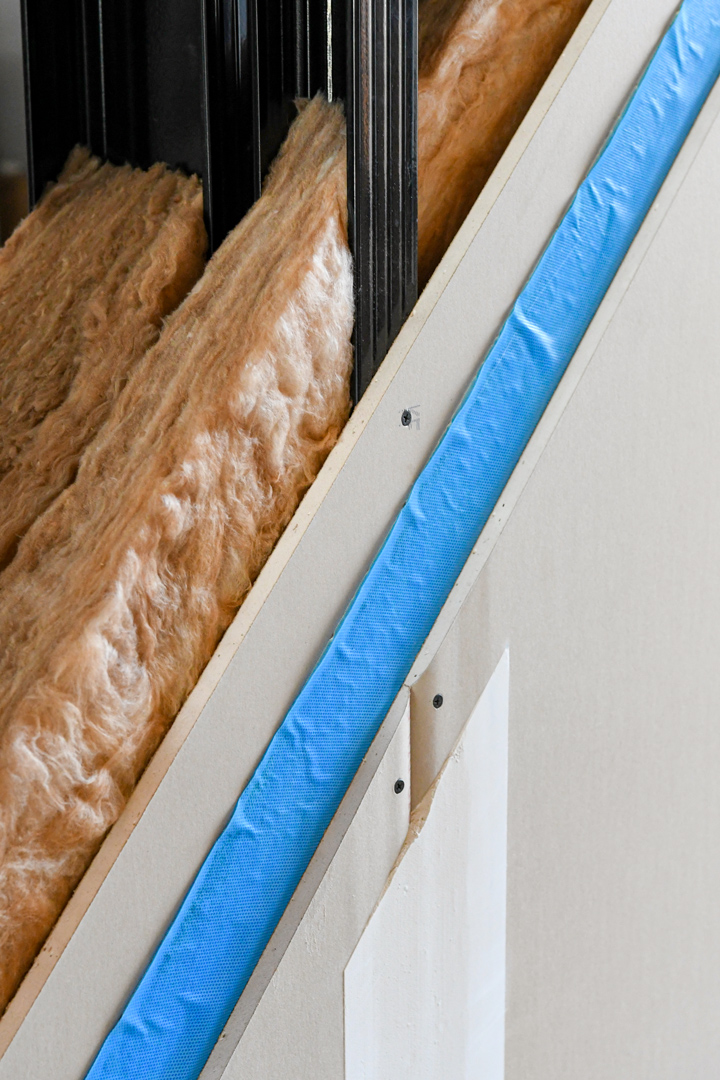

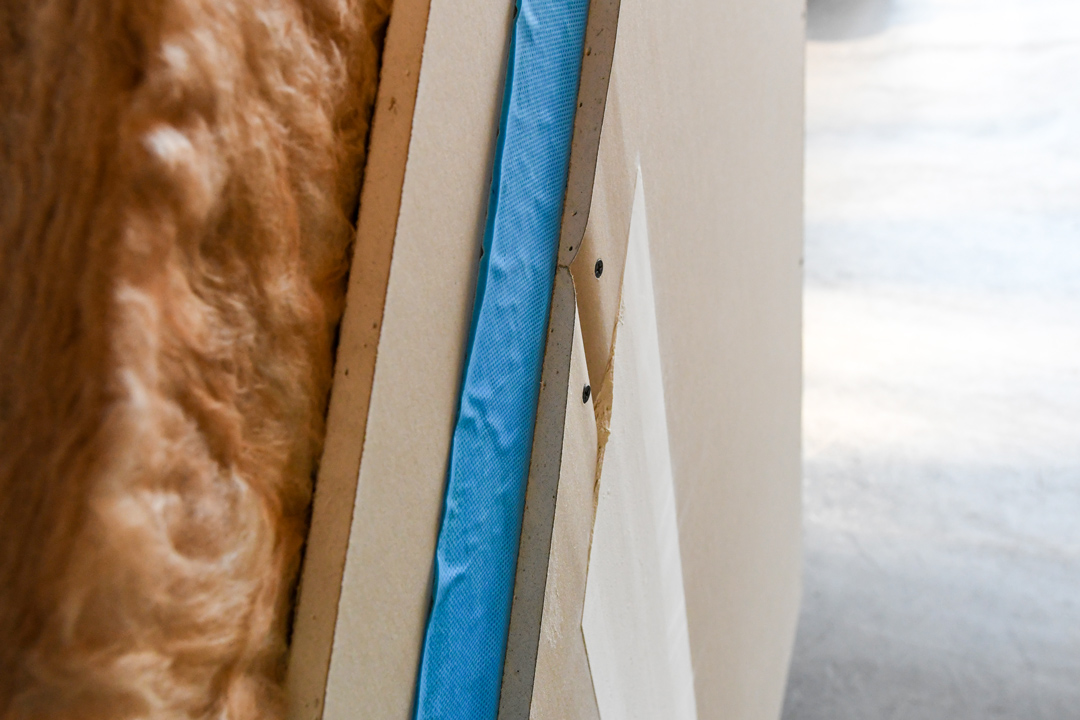

• Interior solution, cladding with two layers
  Following assembly from the outside to the inside:
  Knauf Diamant (Knauf gypsum plasterboard, preformed longitudinal edges with HRAK-edges), Knauf vapour barrier LDS; Knauf Diamant, Knauf Insulation 80 mm; Metal profiles Knauf CW75 and UW75 (stud frame)

Characteristics
AQUAPANEL^® Cement Board Indoor is waterproof, rigid and impact resistant, fire resistance category A1 (not flammable).

Rear elevation
Exterior Wall System

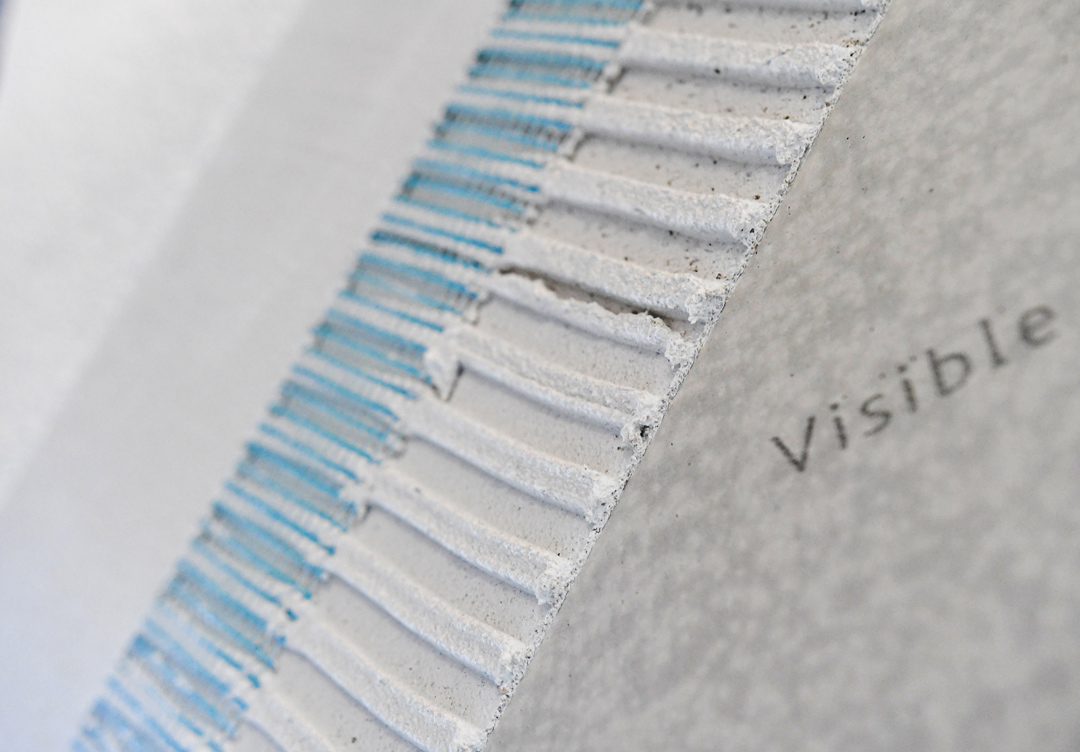

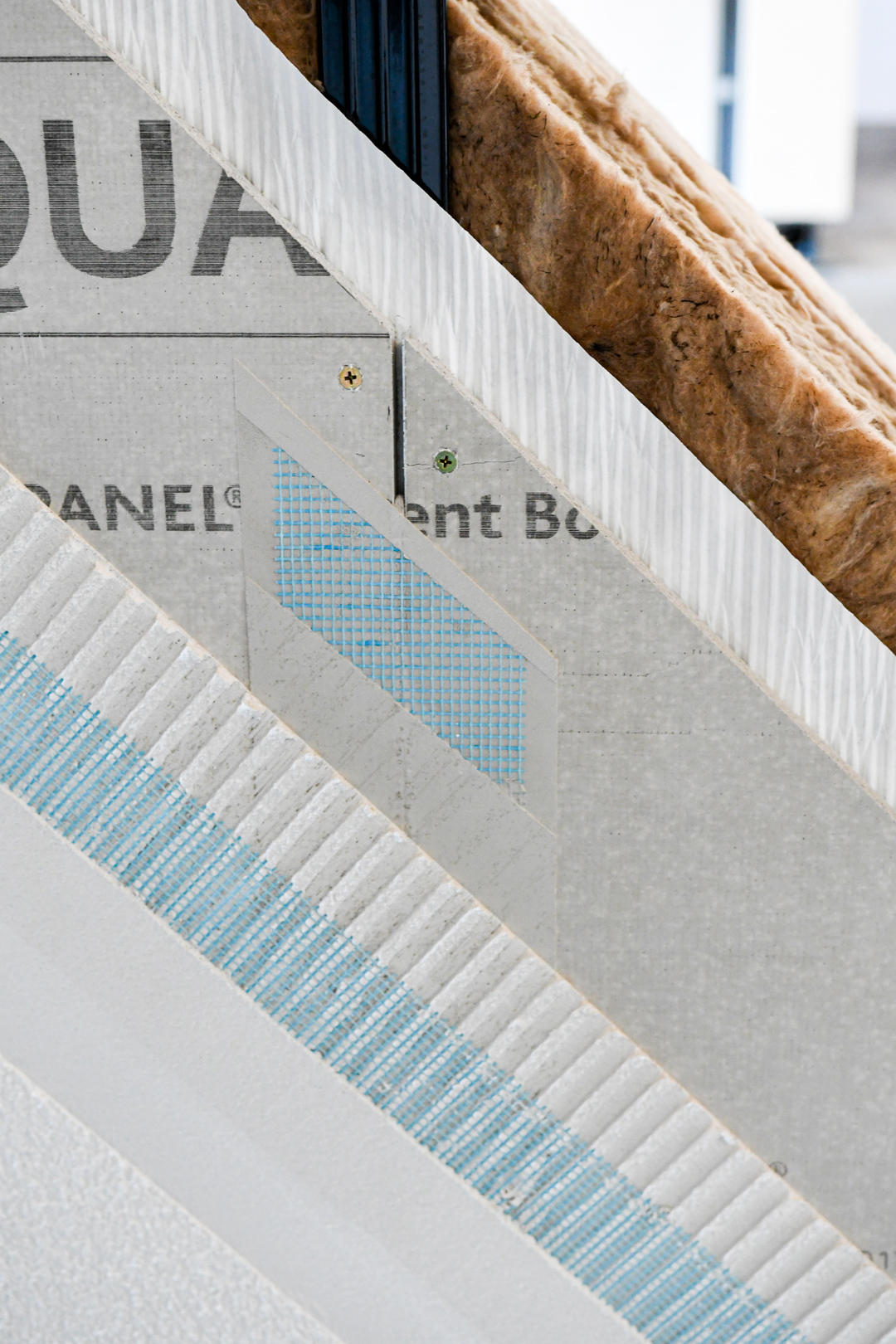

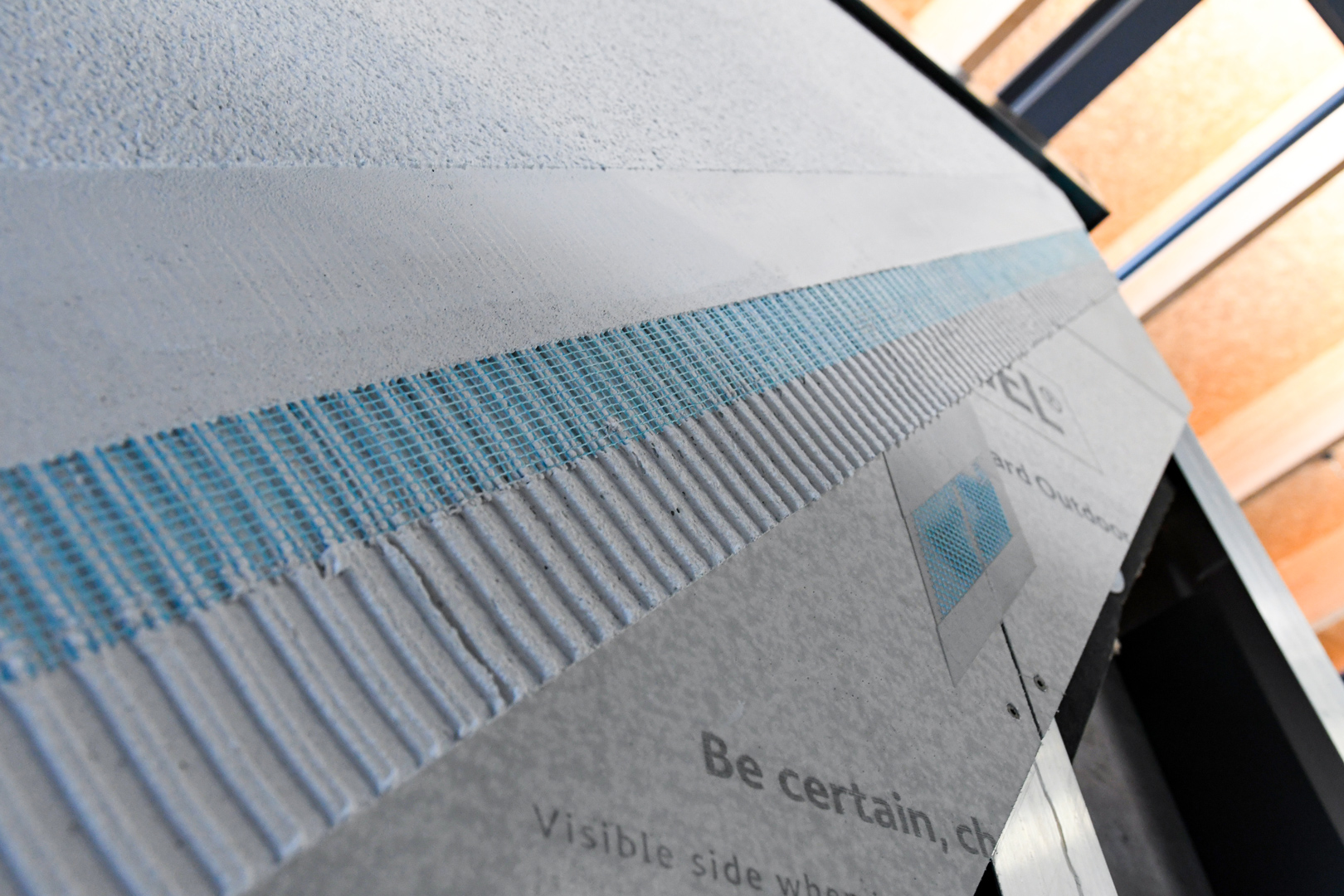

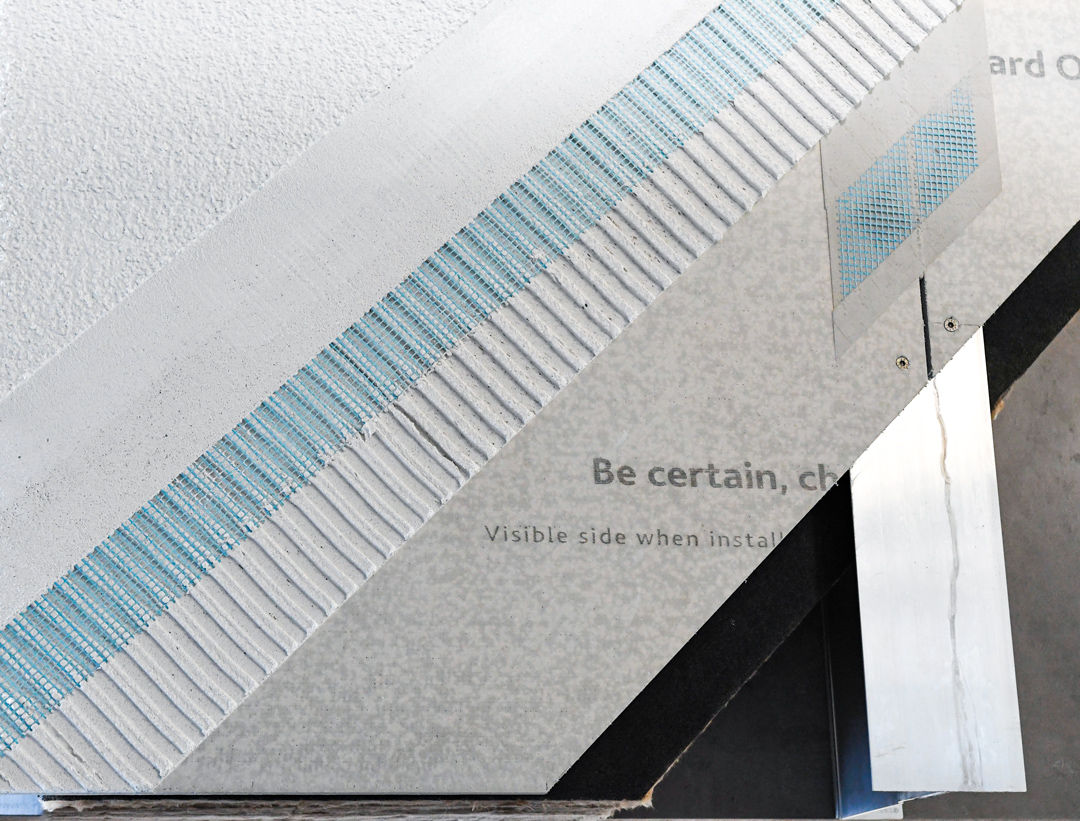

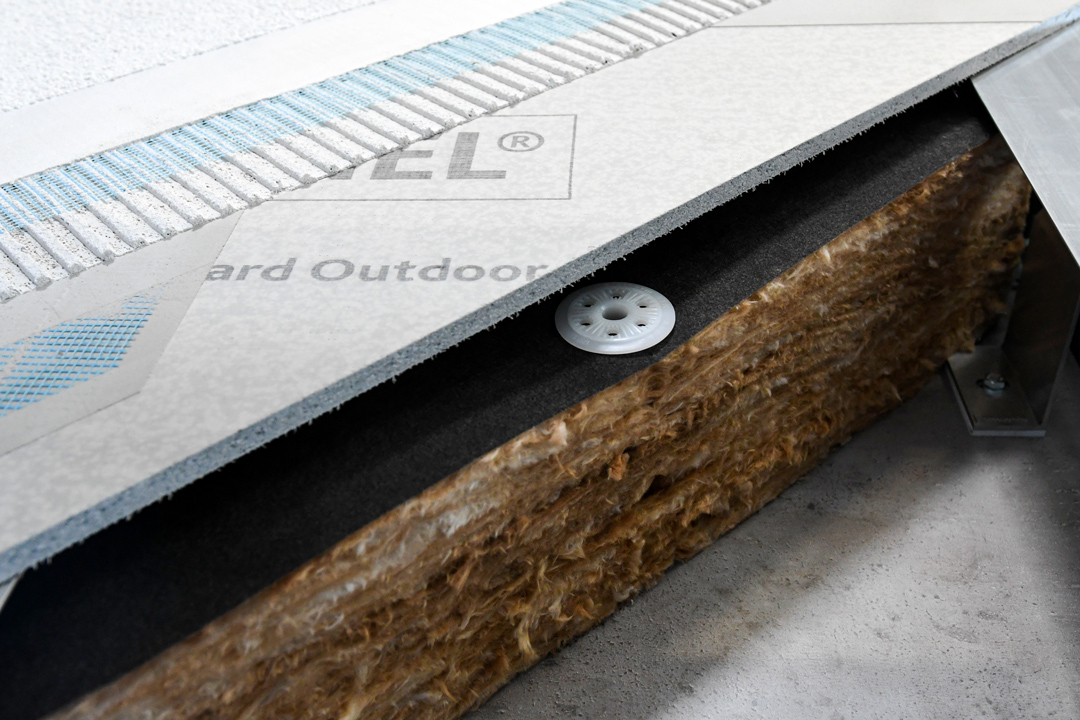

• Exterior Wall – Knauf AQUAPANEL^® plaster system (following assembly from the outside to the inside: white plaster, primer, exterior basecoating, reinforcement mesh), AQUAPANEL^® Cement Board Outdoor (ACB), Knauf Insulation and plate anchors, anchor elements AQUAPANEL^® VHF, aluminium load bearing substructure
• Stud frame system, directly cladded with panels from outside ACB Outdoor, Knauf AQUAPANEL^® plaster system, the same as (1), AQUAPANEL^® Cement Board Outdoor, AQUAPANEL^® Tyvek^® Stucco WrapTM, Knauf Insulation 100+50, metal profile Knauf CW150 and UW150 (stud frame)

Characteristics
Physical properties can be adjusted according to requirements by modification of system components, fire resistance category A1 (not flammable), earthquake-proof construction due to the lower weight than static dead load.
